Automatic 3D interferometer
  • Introducing

The 3D interferometer is effective and cost-effective 0°, 8° APC angle adjustment Automatic focus, automatic calibration, automatic measurement Accurate and rapid, extremely high repeatability and reproducibility

Certification by the authoritative testing agency

Certified by national insitute of metrology. The test results are more accurate and reliable.


Simple and clear software interface design

It can display 2D interference diagram and 3D end face diagram at the same time, which is convenient for engineers to analyse the end face and make grinding improvements.


Automatic measurement function

Equipped with automatic inductive measurement module, you only need to insert the  connector into the chuck and tighten it, no other operation is required. The device automatically starts the measurement and it takes only 0.4 seconds to test a sample.

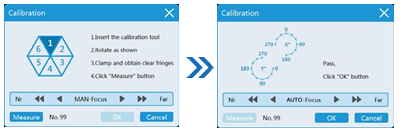

Automatic calibration function

There is no need to manually adjust the X and Y axis reference mirrors ,  making calibration easier  and faster.

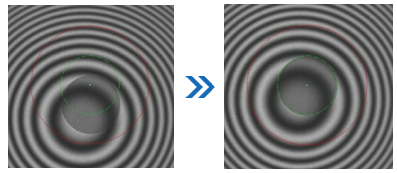

Automatic centeringfunction

There is no need to manually find the fiber center, and only normal measurement is needed to automatically find the fiber center

.

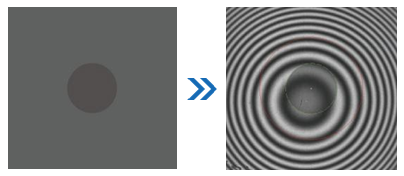

Automatic focus function

The user only makes normal measurement and it  will  automatically adjust the  interference fringe to the clearest state, which greatly simplifies the measurement operation.


Excellent ability to resist dirty spots

Even if there are dirty points on the  fiber end-face, the  equipment can  still measure and  calculate  the accurate results, and the unique seismic design makes it applicable in a variety of complex operating conditions.

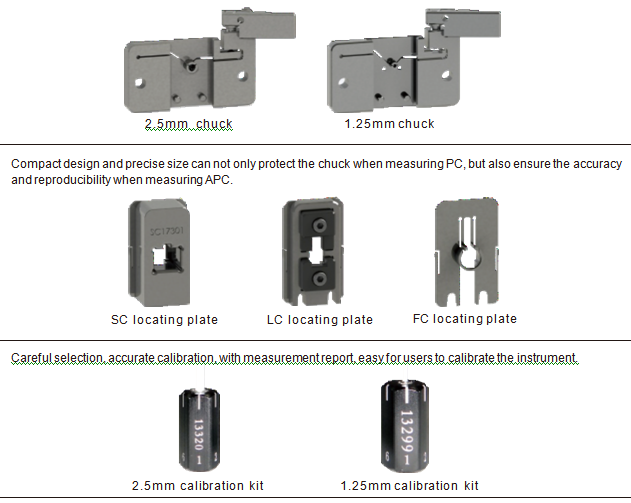

Standard chuck for WKFI full series interferometers

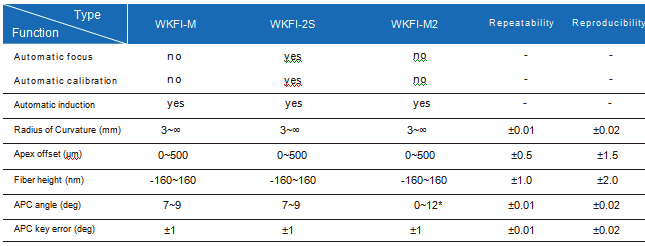

Instrument selection and performance indicator table

Note:  ① All the above models +X is the fiber height extension model, and the extended range is |7000|
② Increase angle feedback system at *, the control accuracy is up to 0.0027 °
