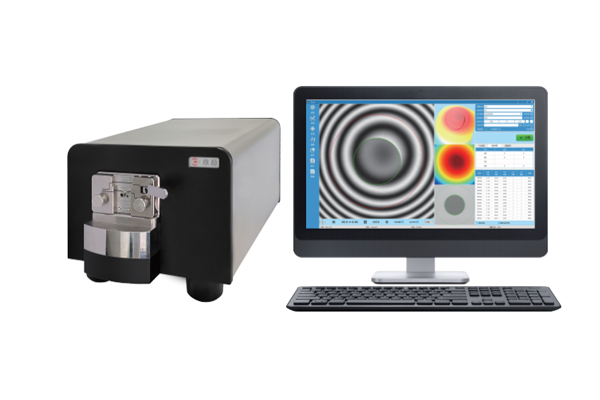

This product is high-precision, non-contact, and some models also have 2D end inspection function.  Restoring  the  three-dimensional  morphology  of  the  fiber  optic  end  face  and calculating various technical parameters can measure the end face parameters of fiber optic connectors such as SC, FC, LC, etc. It has very important applications in the field of fiber optic communication manufacturing.

 Accurate and stable measurement results

Automatic rotation at any APC angle from 0 to 12 °

Equipped   with   a   high-precision   angle   feedback system (0.0027 °), it maximizes the accuracy of APC angle measurement while meeting the special angle measurement     requirements     of     non-standard connectors.   Accurate   rotation   angle,   which   can automatically correct deviation and return to normal when the angle changes due to external forces.

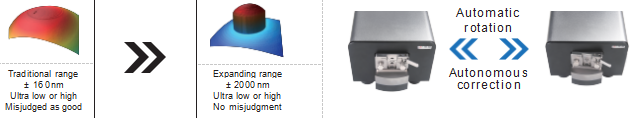

Fiber optic height extension measurement

Active dust prevention of optical systems

In  response  to  the  issue  of  optical  systems  being susceptible to dust, we have innovatively developed an active    dust    prevention    function    to    maximize maintenance cycles.

Data, report, statistical analysis

Using   HTML  format  to   avoid   EXCEL   copyright disputes.  Small  memory  footprint,  fast  read  and write  speed,  no  impact  on  writing  after  reading, especially suitable for network sharing. Preserve the EXCEL   data   function   for   the   convenience   of professional users.
Automatic measurement
Equipped with an automatic induction measurement module, only a locking wrench is required to trigger the measurement.

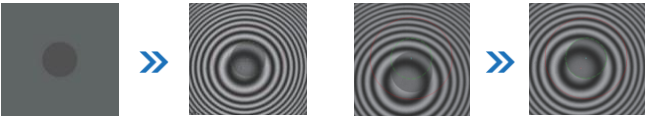

Automatic focusing
Equipped with an automatic focusing  module,  it can
automatically  adjust  the  interference  fringes  to  the clearest   state   within   a   certain   range,   simplifying

 Automatic calibration
Equipped  with  an  automatic  calibration  module, there  is  no  need to  manually adjust the X-axis or Y-axis  reference  mirror,  making  calibration  easier and faster.

Automatic centering
There is no need to manually search for the fiber center, just perform normal measurements and automatically find the fiber center.
measurement operations.

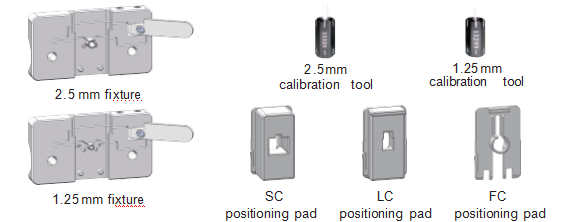

Complete fixture configuration
The fixture adopts a dual buffer design, with adaptive adjustment for locking and loosening, ensuring measurement accuracy and reproducibility while significantly improving the fixtures lifespan. Cooperate with sliding positioning pads to achieve fast switching between PC and APC.

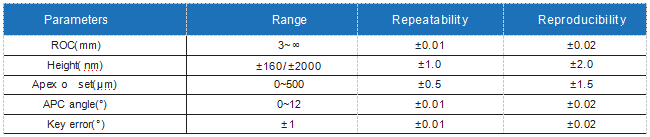

Specification

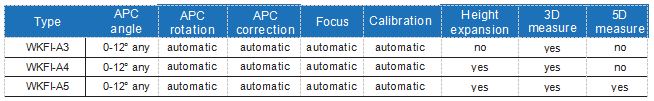

Instrument types
