Digital end-face detector
  • Introducing

Super high image resolution

Equipped with high-precision optical amplification system and digital imaging system. It can achieve super high image resolution and display clear end-face details. Even very small scratches can be presented accurately.

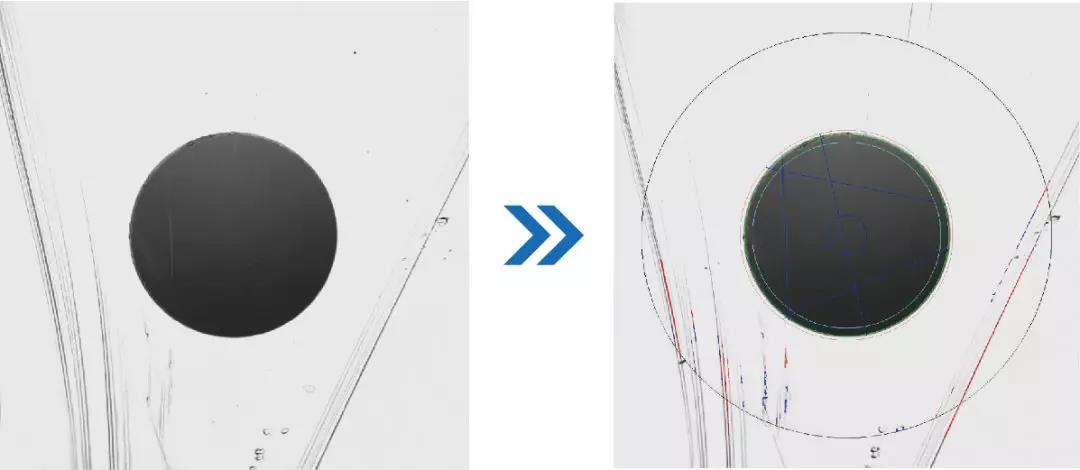

Automatic analysis and judgment

The advanced image recognition algorithm is used to realize the automatic analysis and judgment of fiber end-face, which is an intelligent end-face detection device without artificial judgment.



Correct judgement

Original optical design plus excellent algorithm, strictly implement built-in IEC standards or client custom standards to ensure accurate analysis results.


Built-in IEC standards

There is no need to know about the scratch or defect criteria, it avoids judgment bias caused  by different eye recognition, and supports custom standard function.

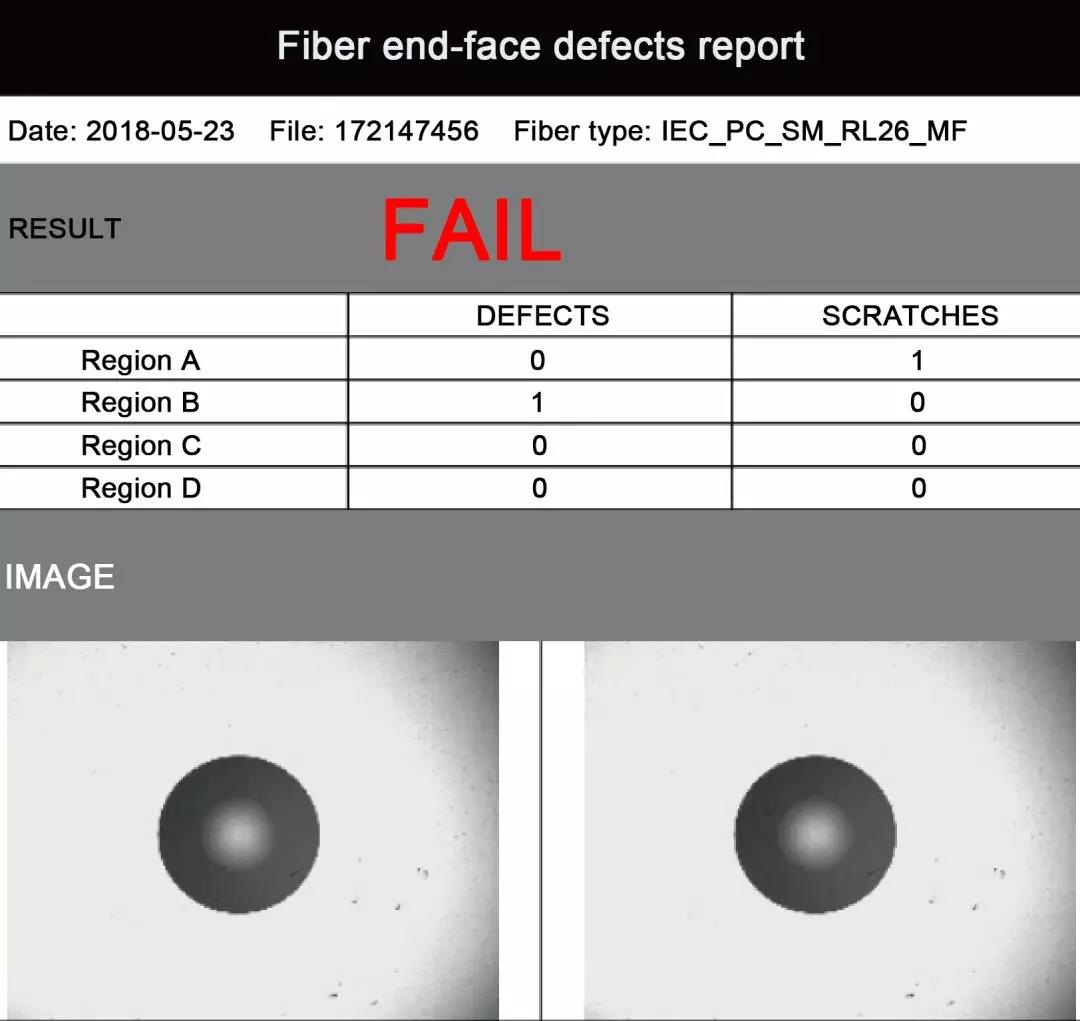

Automatic report generation

Automatic image saving function makes it easier for engineers to view and manage reports.




Specification parameters

Item Parameter

Optical magnification

20X

 Resolution

 1μm

 X, Y axis adjustment

 Manual

 Focus mode

 Manual adjustment

Image analysis method

Automatic analysis

Appropriate temperature

0℃~55℃

 Voltage

 20V

Volume and weight

110W*120H*210D(mm)/2kg
