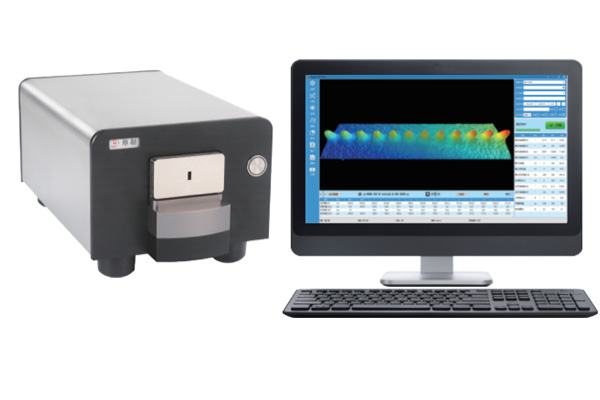

This product is high-precision,non-contact, and uses multiple light sources for scanning measurement.It can accurately restore the geometric morphology of the fiber end face and accurately calculate various technical parameters, used for measuring MPO and MTP products. At the same time, it can also measure connectors such as FC, SC, ST, LC, MU, E2000, etc.
Adapt to full specification MT ferrules
With a field of view of 4.4 * 3.3mm, it can measure up to 72 cores of MPO and MTP products based on MT12x and MT16x, making it easy to handle future 200G or 400G applications.
Touch sensing activation
Equipped with a touch sensitive switch, measurement can be initiated with just a gentle touch, without the need to click on the keyboard or software, maximizing employee convenience.
Rotate at any APC angle from 0 to 12 °
Equipped with a high-precision angle feedback system (0.0027 °), it maximizes the accuracy of APC angle measurement while meeting the special angle measurement requirements of non-standard connectors. Accurate rotation angle, which can automatically correct deviation and return to normal when the angle changes due to external forces.
Automatic calibration and chip storage
Equipped with an automatic calibration system, it can automatically adjust the X and Y reference plane mirrors, and the calibration data is written into the fixture chip in real-time. After replacing different fixtures, the chip values are automatically read and adjusted.
Automatic focusing and recognition of end face profile
Equipped with an advanced and efficient autofocus system, it can quickly respond and find the clearest position of interference fringes, automatically recognize the end face shape, start scanning from the optimal position, and complete the measurement without adjusting any hardware.
Calibrate only once, measure MT and MPO/MTP simultaneously

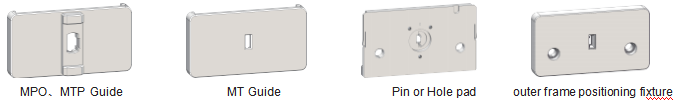

Unique sliding cover design, quick combination of pin (hole) pad and guide, achieving fast switching between MT and MPO/MTP measurement, avoiding tedious processes such as fixture disassembly and recalibration. The outer frame positioning fixture protects the pin while meeting special needs.

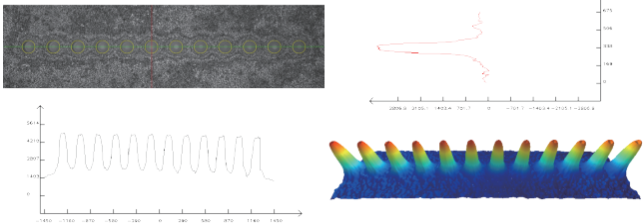

Arbitrary section view

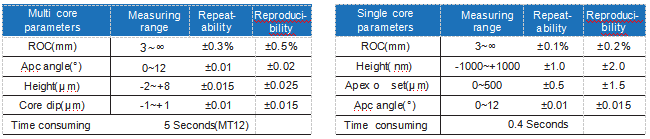

Data, report, statistical analysis

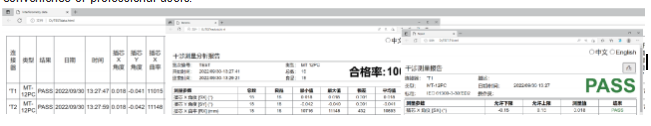

Using HTML format to avoid EXCEL copyright disputes. Small memory footprint, fast read and write speed, no impact on writing after reading, especially suitable for network sharing. Preserve the EXCEL data function for the convenience of professional users.
