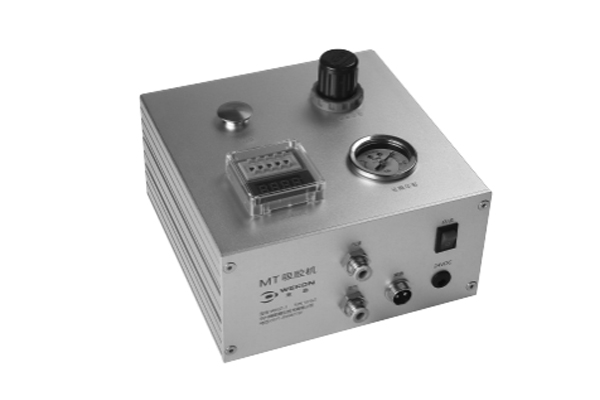

The production process of MPO connectors generally includes: cable cutting, threading of loose parts, peeling, fiber arrangement, adhesive injection, threading, curing, grinding, end inspection, 3D interference, assembly of outer frames, IR loss testing, polarity testing, etc. After the MT core is injected with glue, a full rubber package should be formed at the end face of the fiber optic hole and the core fiber optic hole should be filled with glue. If the rubber bag is too small, the cured rubber bag does not provide sufficient protection for the optical fiber, and the optical fiber is prone to fragmentation during grinding and debonding. The final ground end face may show large black spots, black and white spots, or fiber core scratches. If there are bubbles in the adhesive inside the fiber optic hole, the fiber may break due to uneven stress during curing, ultimately leading to product scrapping. The MT core suction machine is an automated device used in the glue injection program. It automatically sucks out the internal glue of the core by controlling the suction force and time, making the glue evenly contact with the fiber and forming a uniform size glue package on the end face of the core. It is an essential tool for protecting the fiber and avoiding fiber cracking.

Features

 Exquisite equipment, simple and easy to use Can effectively improve production efficiency and reduce product cracking rate. Equipped with foot pedal, easy and fast operation. Equipped with a clock and digital display, it can independently adjust the glue suction time to maintain a consistent amount of glue sucked out. Equipped with air pressure digital display, precise control of air pressure, and automatic adjustment of the amount of glue sucked out.

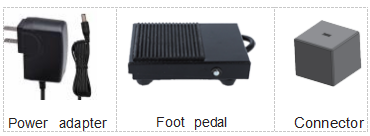

Accessories

Accurately adjust time and pressure

 Specification
