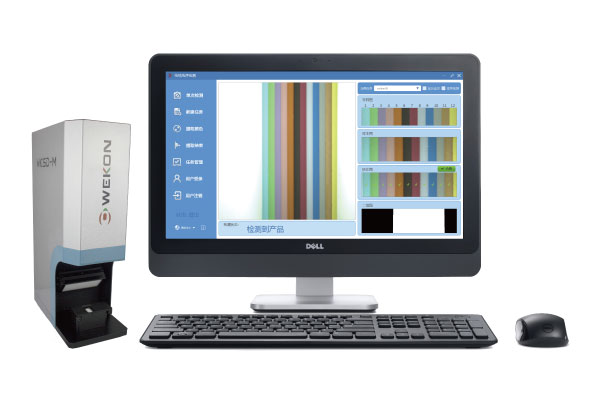

The line sequence detector is used for the color sequence dislocation detection of MPO fiber. The WKSD-M uses optical microscopy imaging, with high magnification optical microscope and advanced digital imaging technology to realize automatic detection of line sequence arrangement. Improve the detection error or detection mission caused by eye fatigue when judging by human eyes, remind operators with sound and image, guarantee product quality, reduce the labour intensity of operators and improve production efficiency.

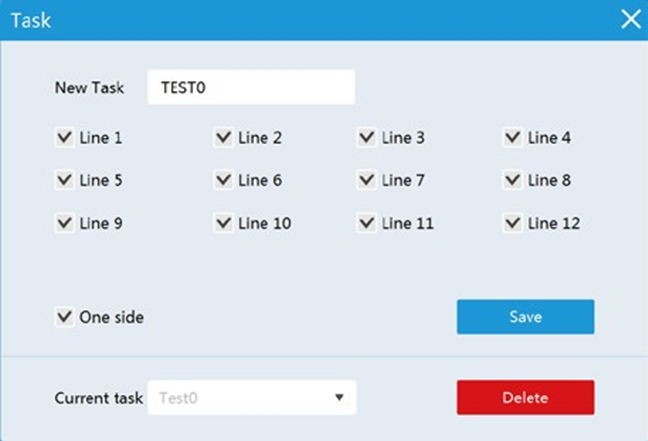

Select the combination of the wire harness according to the detection needs, and choose "single side detection" or "double side detection". The material sample can be saved  as a task, which is convenient for operators to make repeated calls.

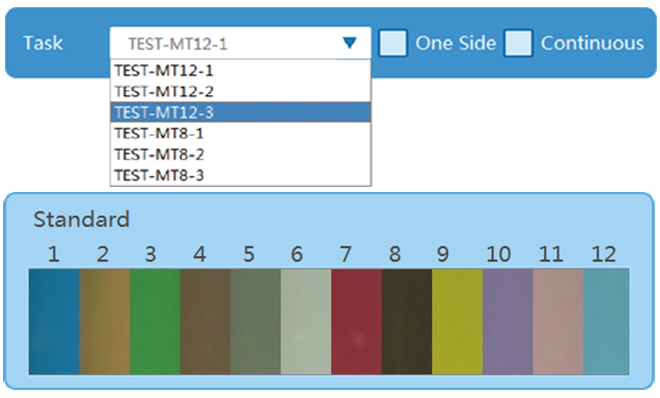

According to the production task,  select  the corresponding sample directly and start the test task quickly.

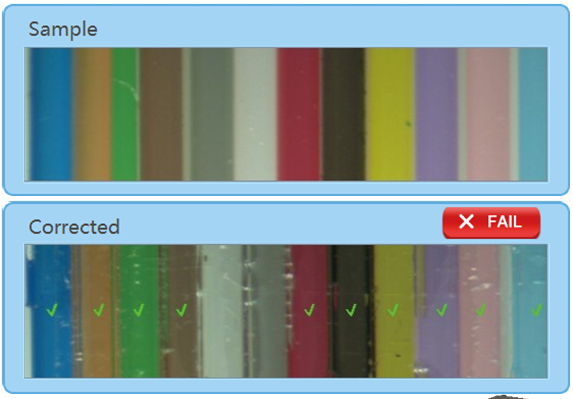

Compare with the standard sample graph, so that users can see the line sequence error position visually.

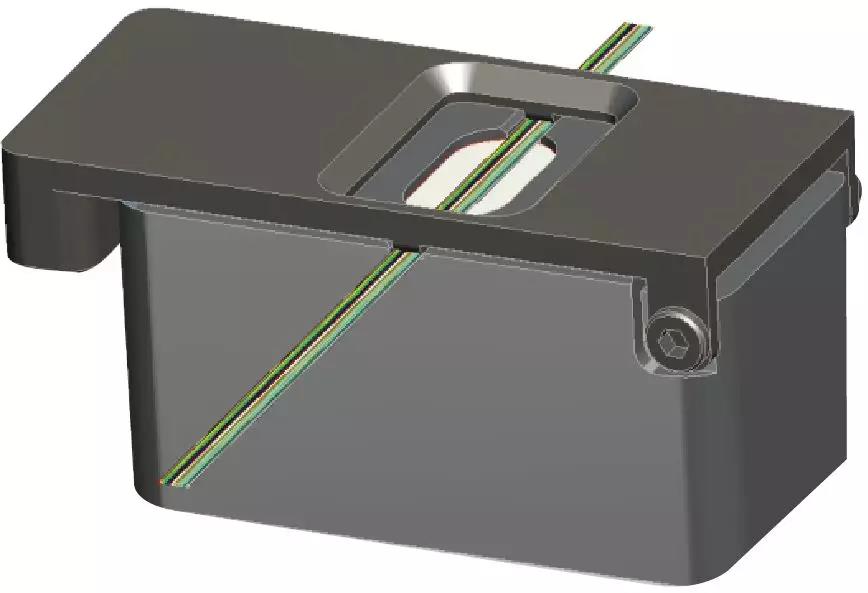

Precision chuck achieves accurate positioning, and ensures that different operators can get the same test results.

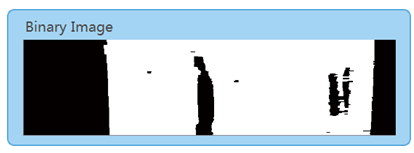

Accurately match the brightness of the light source to ensure the image is in the best test state.

Performance parameters
